Leading Industrial Manufacturing Solutions Provider

Home > Lithium Battery Pack > Vertical > Athena Energy Storage Battery Cost-Effective Model: 15 kWh

Wall-mounted

Vertical

Stackable

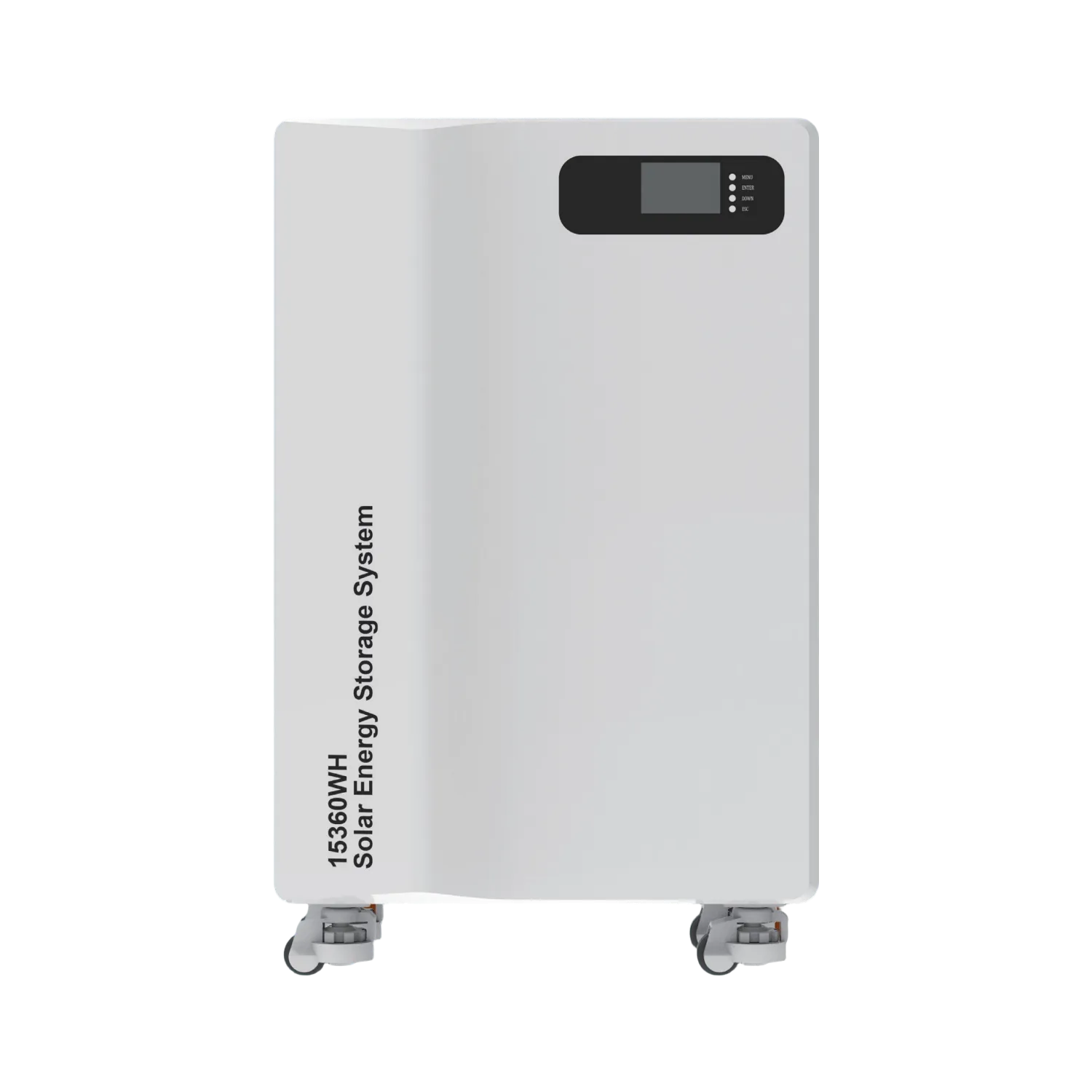

Athena Energy Storage Battery Cost-Effective Model: 15 kWh

Brochure

Battery	Model	SCAE-B-51.2-300	SCAE-B-51.2-335
	Model	SCAE-B-51.2-300	SCAE-B-51.2-335
	Rated Capacity	15360Wh(300Ah)	17152Wh(335Ah)
	Nominal Voltage	51.2V	51.2V
	Discharge Voltage Range	43.2V-58.4V	43.2V-58.4V
	Standard Charing Current	100A	100A
	Max Charging Current	200A	200A
	Max Discharging Current	200A	200A
	Depth of Discharge	95%	95%
	Communication Interface	CAN/RS485	CAN/RS485
	Cycle Life	≥8000, 25±2℃, 0.5C, EOL80%	≥8000, 25±2℃, 0.5C, EOL80%
	Working Temperature Range	Charge: 0℃-50℃; Discharge: -20℃-60℃	Charge: 0℃-50℃; Discharge: -20℃-60℃
	Storage Temperature	-10℃ -60℃	-10℃ -60℃
	Dimension	48.52677CM	48.52677CM

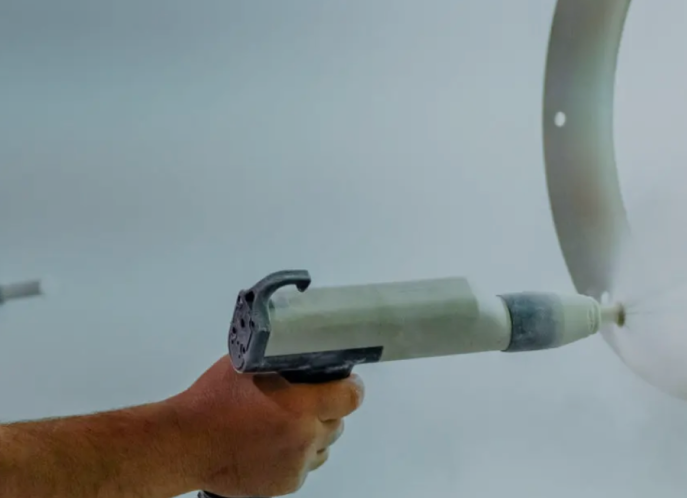

Powder Coating

An eco-friendly dry coating using electrostatic adsorption and high-temp curing. Zero VOCs, 95%+ efficiency, providing a durable, corrosion-resistant, and aesthetic finish.

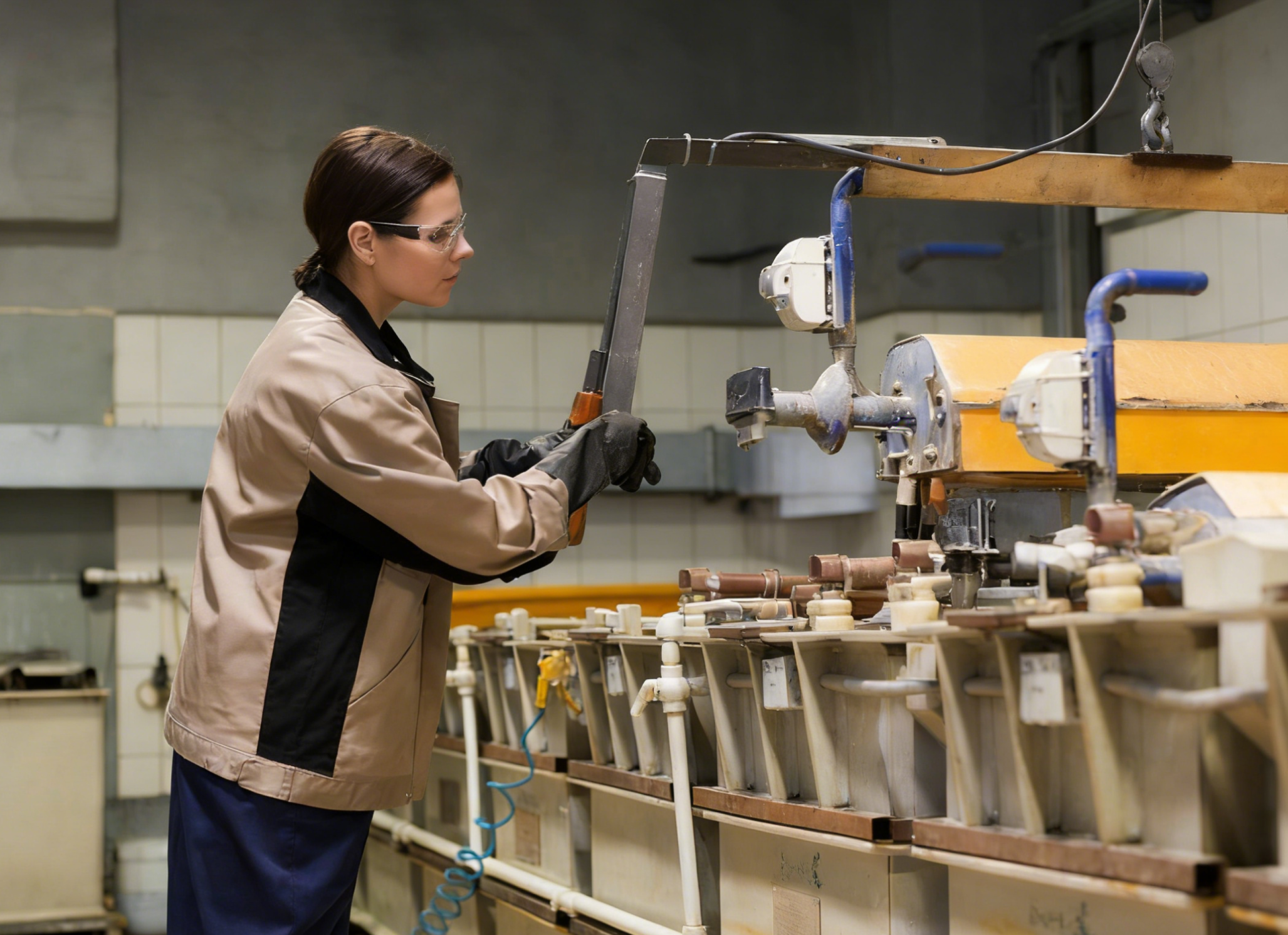

Electroplating

A process depositing metal layers via electrolysis. Enhances gloss, wear, and corrosion resistance while improving conductivity and solderability.

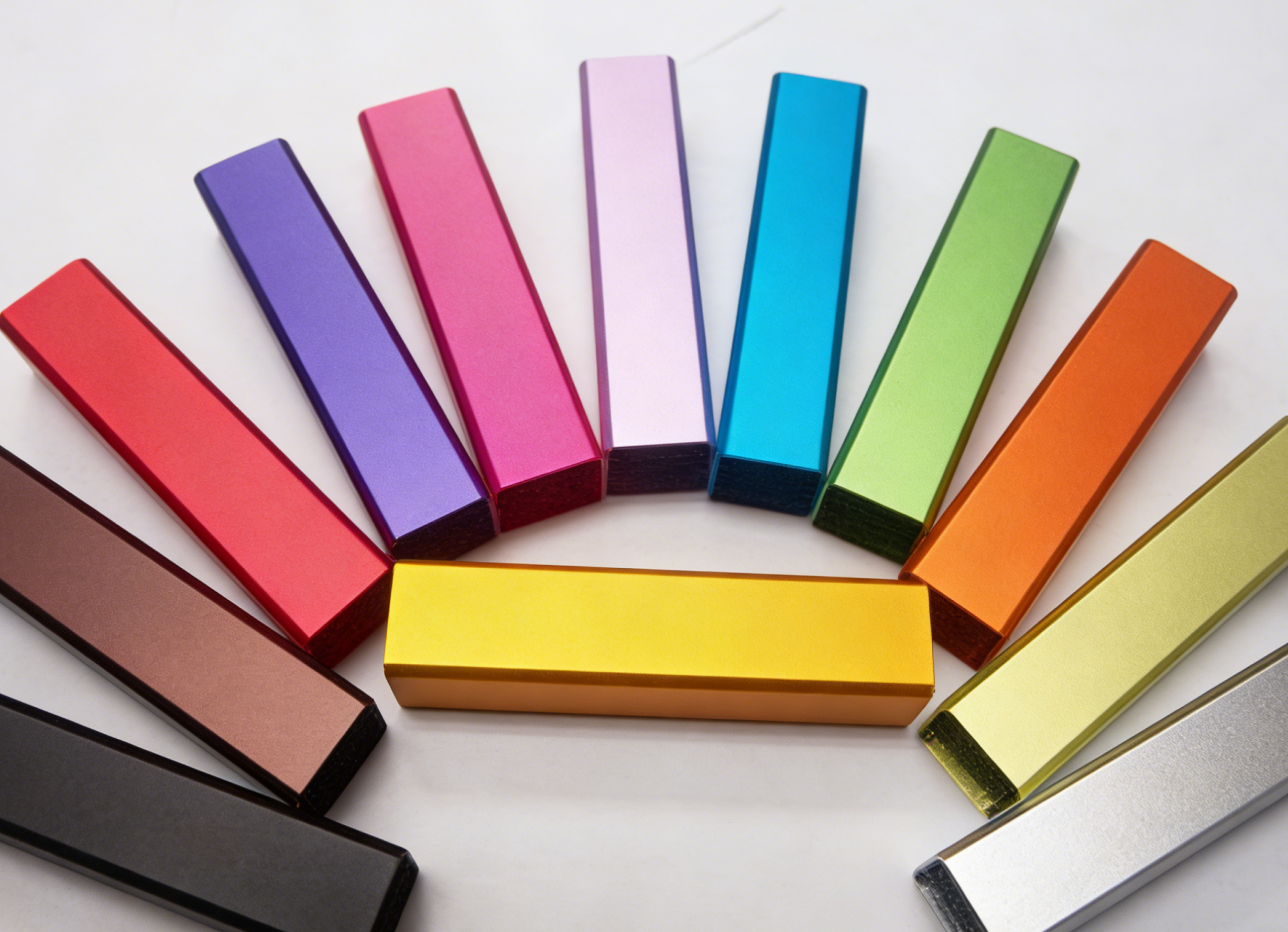

Anodizing

Electrochemical process forming an oxide layer on aluminum. Increases hardness and corrosion resistance while allowing for vibrant, lasting colors and matte textures.

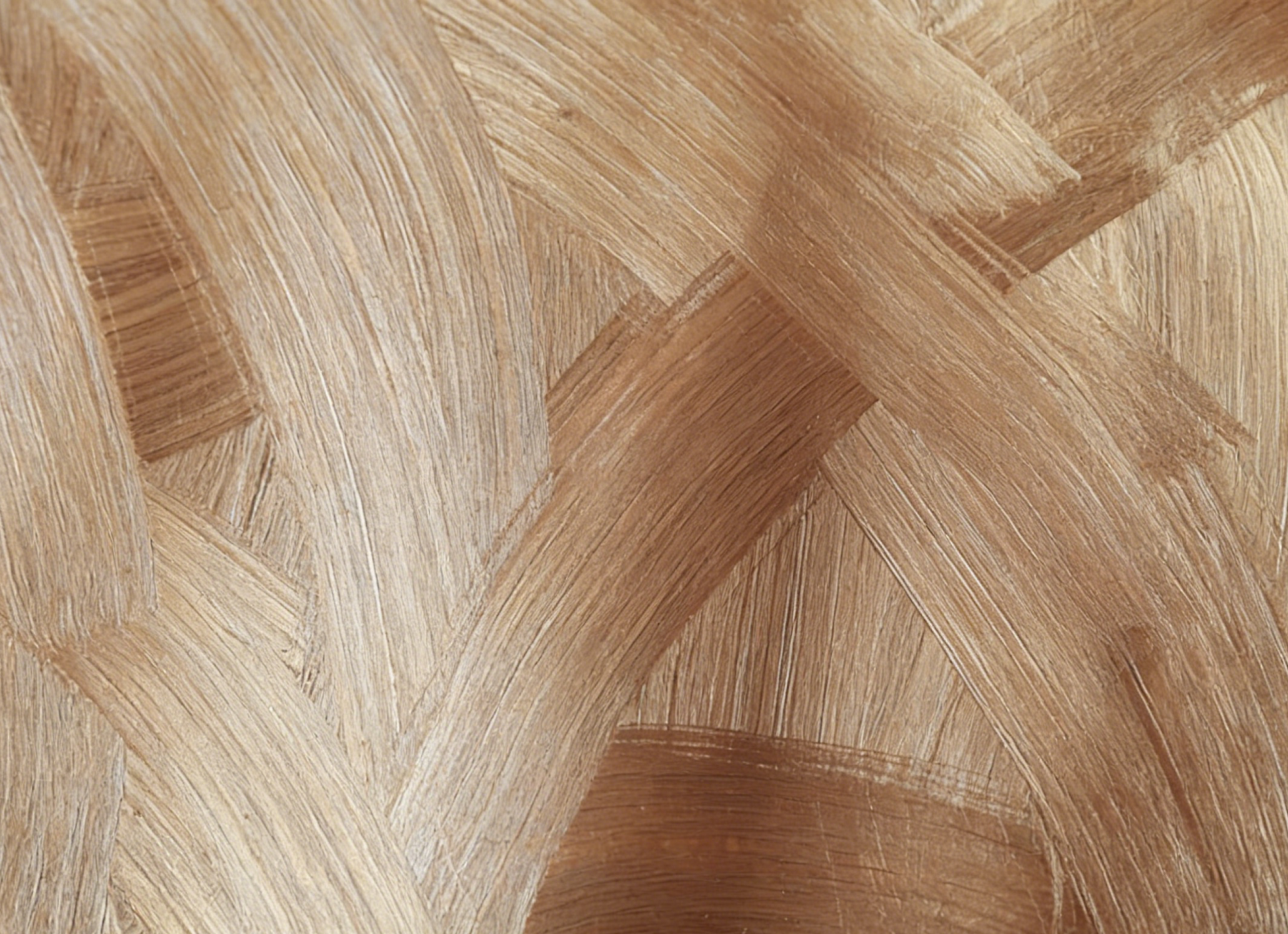

Brushed Finish

A mechanical process creating directional textures. Masks defects, enhances scratch resistance, and provides a sophisticated metallic luster.
